NUTT Electric Bicycle 2-PIN Power-off Hydraulic Disc Brake Kit

$155.99
$169.99
Style
  • Left & right with 180mm rotors
  • Left & right with 160mm rotors
Extra Discount With %

# Specification

Order in the next [hour] to get it between [date_start] and [date_end]

★ Manufacturer rating

📫 Online Service

Please call +1 (669) 696-7538
service@hyclinebike.com

Online: Monday to Saturday 9AM-5PM PST

1-Month FREE Return/Exchange
1-Year FREE Exchange Instead Of Repair

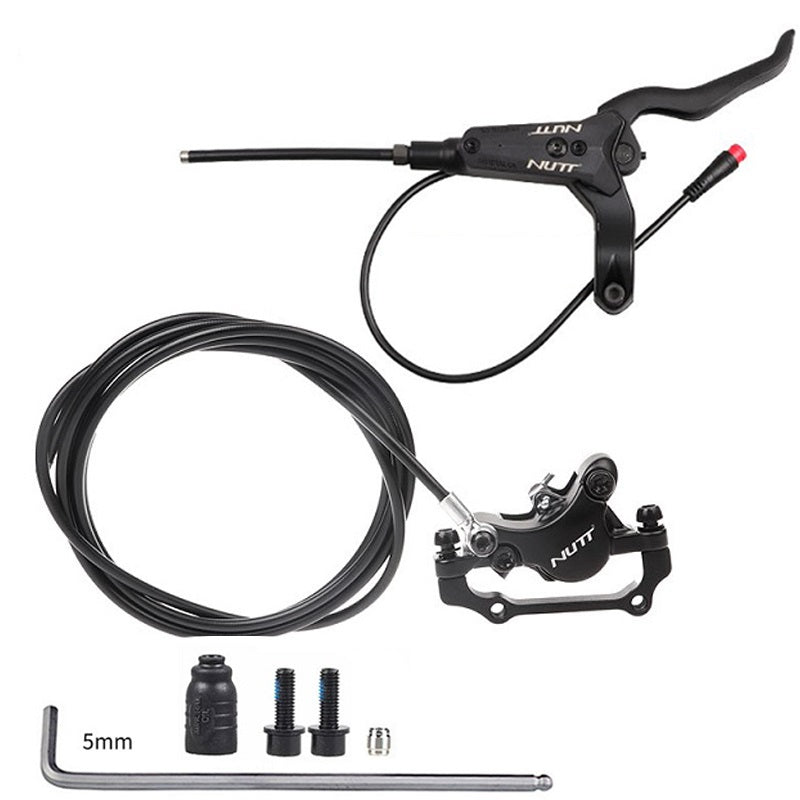

NUTT Electric Bicycle 2-PIN Power-off Hydraulic Disc Brak main display picture

Just a simple installation makes for the safest and most reliable braking!

NUTT hydraulic e-brake system is a high-end braking system that provides more stopping power, is more durable, faster/more reliable, and predictable pad retraction when releasing the brakes, and is virtually maintenance free

Hydraulic brakes have better transmission efficiency and are more durable than traditional mechanical brakes. With the E-bike hydraulic brake set, with dual piston brakes, no matter how fast the bike is going, how steep the terrain is, or how wet the environment is, a gentle pull on the brake lever will stop the bike immediately.

The bike hydraulic brake set adopts the left front and right rear braking method, fitting most Americans' habits. The length of the front oil pipe is 53.1 inches (1350mm), the rear oil pipe is 82.7 inches (2100mm), and the disc is optional 160mm or 180mm.



Feature:

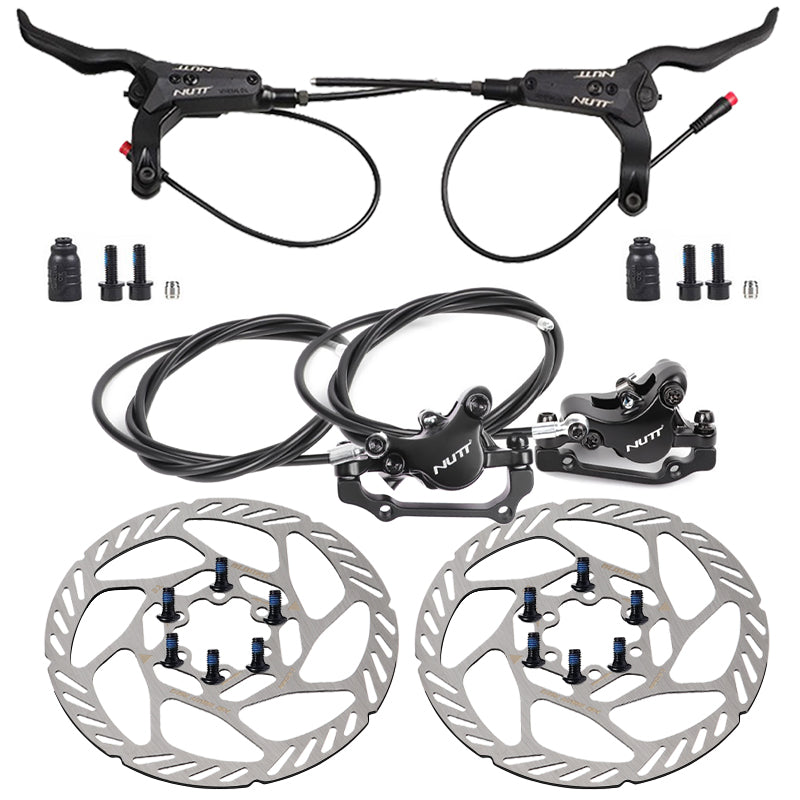

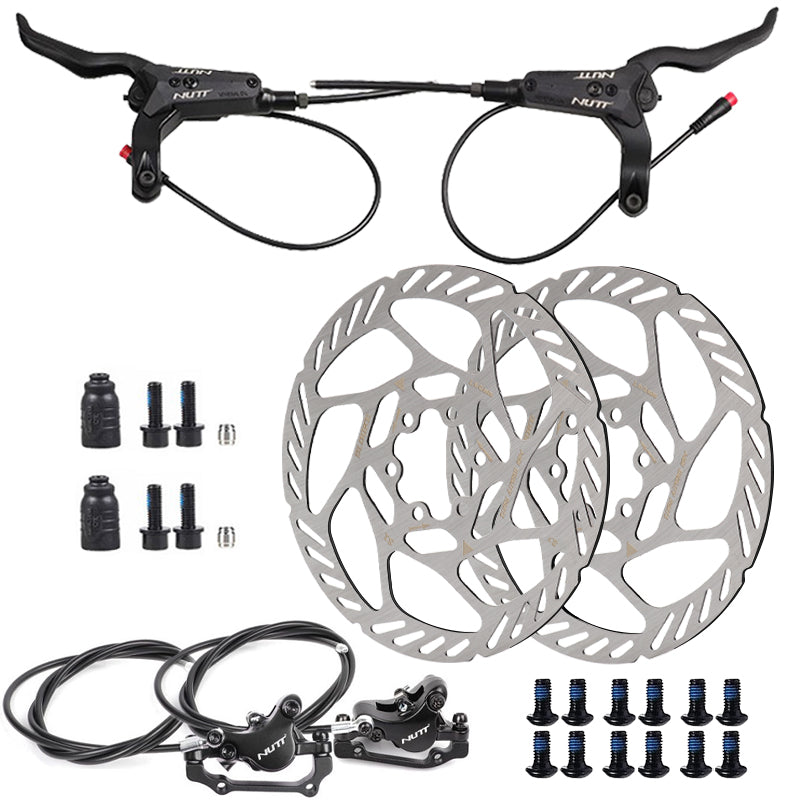

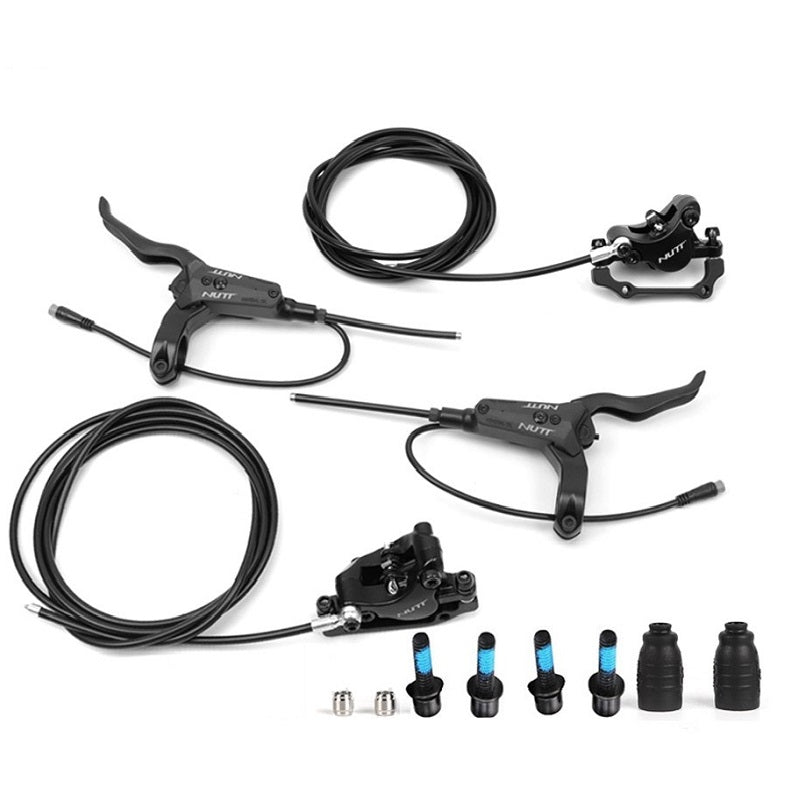

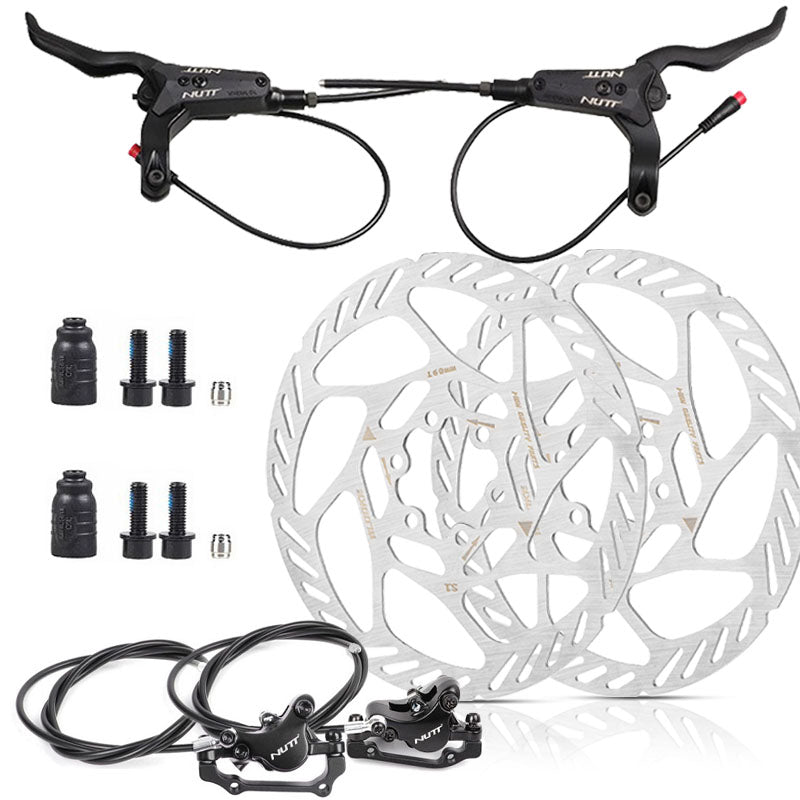

  • Left front and right rear braking. The full set contains two discs
  • High power and controllable braking system
  • High-strength aluminum alloy brake lever/ Cast Aluminum Bracket
  • Dual piston brakes, High Heat Dispersion & Heat Tolerance
  • Simpler to repair and maintain.

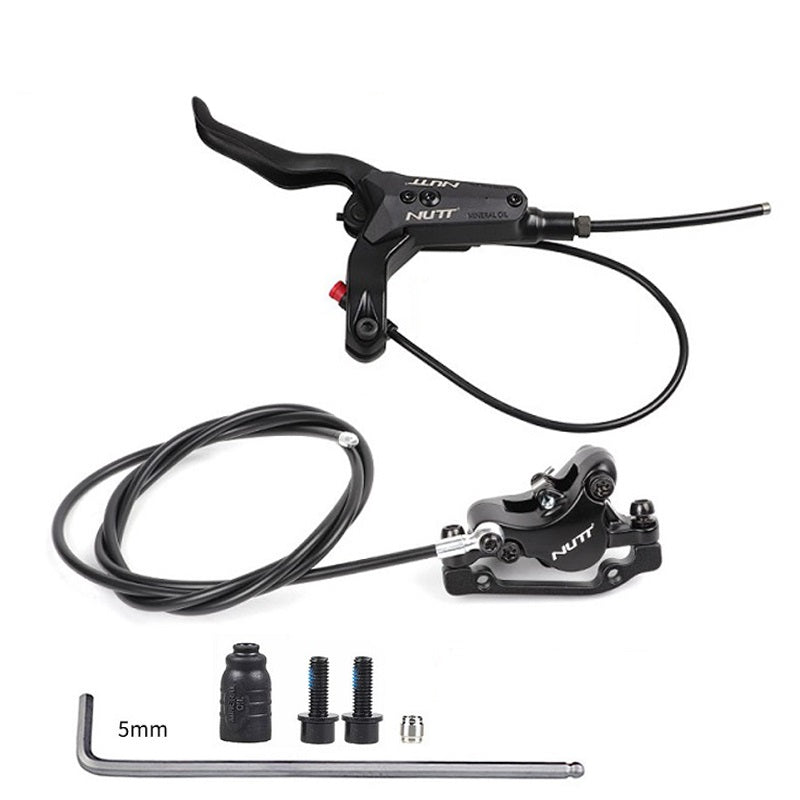

  • 160mm PM/IS with universal mounting adapter (T25 Torx Wrench &
    5 mm Hex Key Wrench)
  • Used for E-bike models with caliper left side mounting.
Nutt brake for bikes

Specification:

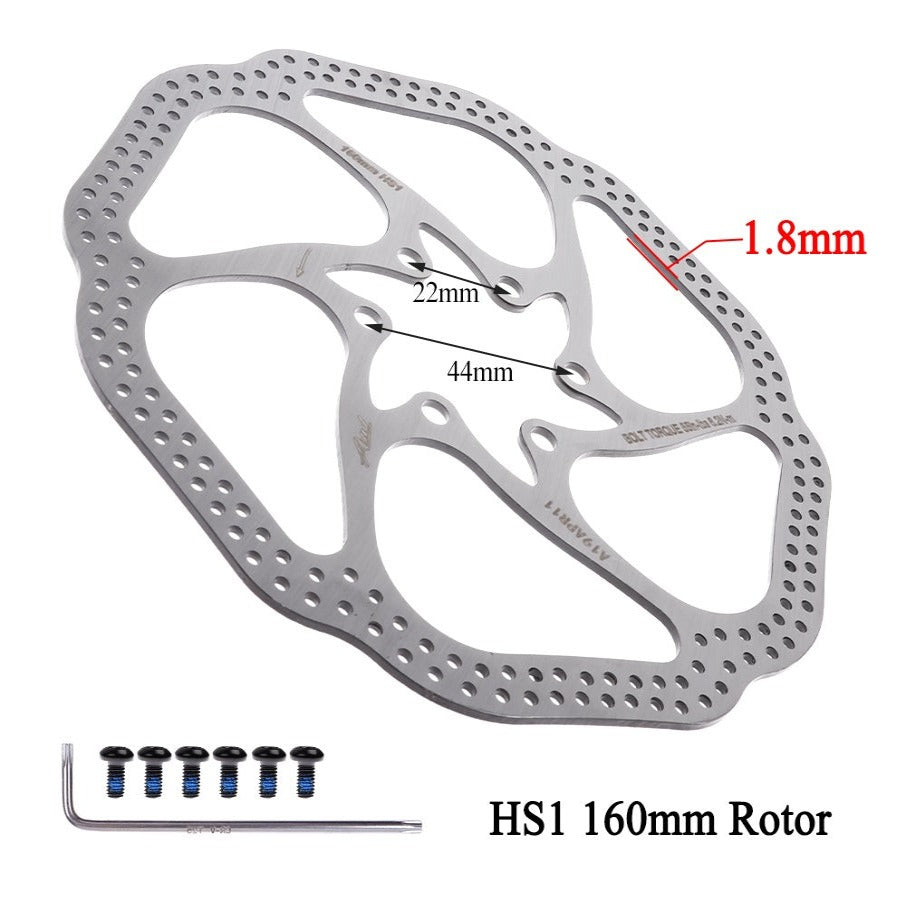

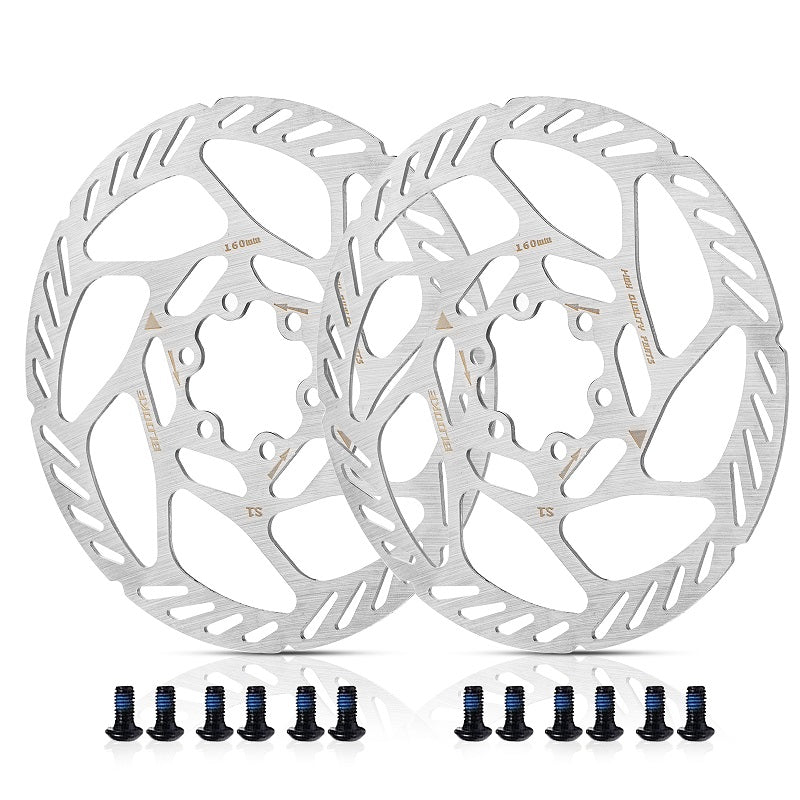

Rotor size 160mm/180mm
Mounting position: left side

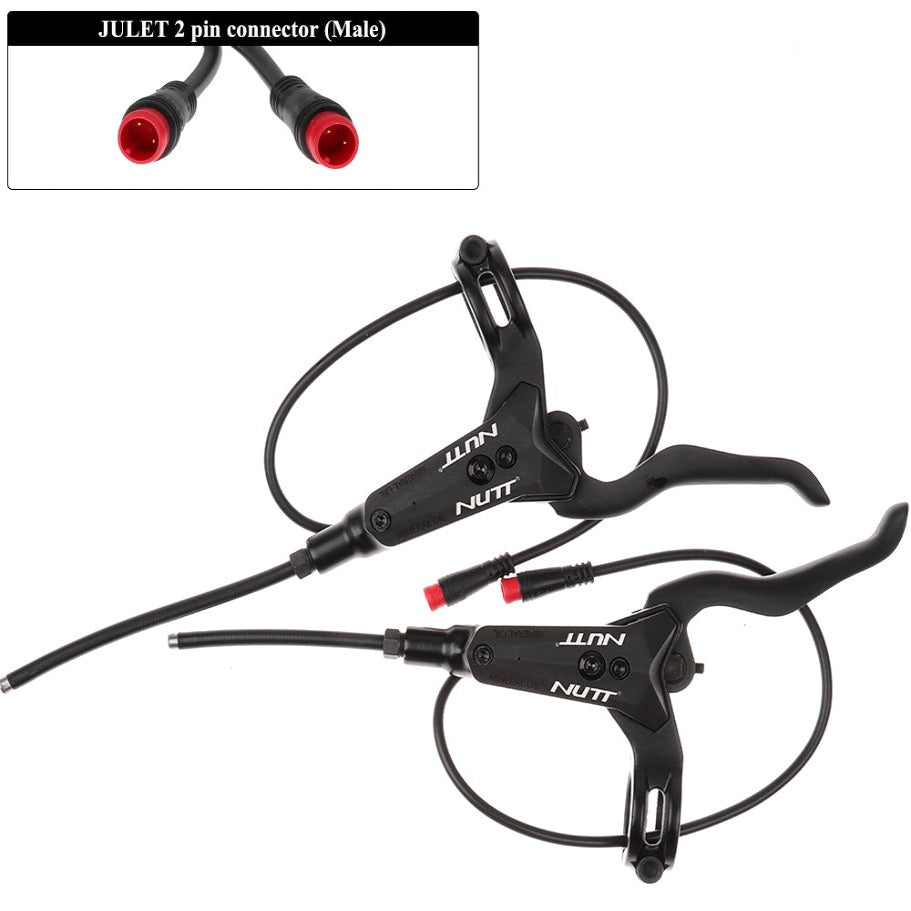

Type of Connector Standard 2-PIN Connector
Split Design Compatible with internal cable routing frame
Rotor Adaptation Front  :F-160mm/R-140mm.
Rear   :F-180mm/R-160mm.
Hose Length Front: 53.1 inch(135cm)
Rear: 82.7 inch(210cm)



Tips:

  1. Before purchasing, please confirm whether the connector is 2-pin or 3-pin. And choose the correct model you need.
  2. The disc brake caliper of this disc brake kit can only be installed on the left side of the wheel, not the right side.
  3. Before purchasing, please confirm whether the length of the hose meets your needs: Front: 53.1 inches (135cm), Rear: 82.7 inches (210cm)



Customer Reviews

Based on 9 reviews
89%
(8)
11%
(1)
0%
(0)
0%
(0)
0%
(0)
D
D.H.
It has some smooth stopping power

I have been using this brake set up for a little less than a month and it performs just as well as some of the pricier models that I have on my other bikes. It has a smooth build up of breaking power and it you want to lock it down just squeeze. I do a lot of long downhill riding, nothing crazy, as I live in the foothills so coming and going require uphill and downhill riding, I never experienced fading with this brake set up and it was very easy to swap out the mechanical for the hydraulic set up. Crimping the line at the lever was easy, items were bagged with instructions. If you dont feel comfortable crimping hydraulic lines take it to the bike shop. Every part they used was quality, there was nothing in the build that made me question my safety. These are great brakes for the cost, I would not hesitate telling a friend.

S
Stephen Fender
Great stopping power

These brakes work exceptionally well, however the wiring on the master cylinders must be swapped to shut the motor off when the brakes are applied. The Zoom 3 pin models switch on pins 2 and 3 and the Bafang only works on pins 1 and 2. The white wire from the master cylinder must be crossed over the the red wire to the connector to work with the Bafang wiring harness. If you are handy with a soldering iron and shrink tubing it is an easy fix. Otherwise, you might want to adjust your expectations.

G
Gizzy
Good for Ebike

Great kit for the rear wheels but you need to source the disk, I use the 180mm which works fine. I like the connective fluid cable and the lever comes equipped with the switch to cut power off. Easy to install hardest part is cleaning up the cable runs. Now I will order the front and I will have complete hydraulic brakes.

H
H. Haro
Must have upgrade for e-bike.

If you have an ebike with mechanical brakes this is a must have upgrade. The handle itself is very nice built and has electric cutoff built in. You will need a brake barb tool to cut the hose to size. While it does come pre-filled I also recommend a bleed kit to make your life a lot easier when installing. The caliper uses MT200 pads which are very widely available. If you have mechanical brakes on an ebike you need to invest in hydraulic immediately. After using them for a few rides it's crazy hydraulics aren't stock. I had previously tried going the DIY route with standalone cutoff switches and never had success. Having them built in is worth it plus it's a cleaner look. They do offer a single brake (rear) and the dual brake option. I do wish the single option was the front brake since this is where the majority of your braking it done. You can get around this by mounting on the front but your lever would either be on the right side (normally left for front) or you would need to flip it which would put the sensor on the top and make it visible. I have used quad piston kit on my ebike as well and didn't notice much change in pull effort or stopping power compared to this. Both kits perform and cost about the same. Either are a massive upgrade over mechanical. If you are looking to only upgrade one I definitely recommend looking for a front kit.

H
Henry Eve
Really cool

Great brakes. Very strong. I put them on my EBike.
