Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set

Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set
Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set
Tektro E350 Please check your E-bike’s connector model (2 or 3 PIN) before purchasing
Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set 160/180mm Caliper Set
Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set 160/180mm Set
Tektro HD-E350 Hydraulic Disc Brake | Electric Power Off
Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set 160/180mm
Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set
Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set
Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set 160/180mm
Tektro HD-E350 Electric Bike Hydraulic Disc Brake rotor 160/180mm
Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set 160/180mm caliper and lever
Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set 160/180mm bicycle brake rear caliper
Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set 160/180mm rear caliper
Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set 160/180mm caliper picture model
Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set 160/180mm Brake Lever
Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set 160/180mm rotor
Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set
Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set
Tektro E350 Please check your E-bike’s connector model (2 or 3 PIN) before purchasing
Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set 160/180mm Caliper Set
Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set 160/180mm Set
Tektro HD-E350 Hydraulic Disc Brake | Electric Power Off
Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set 160/180mm
Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set
Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set
Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set 160/180mm
Tektro HD-E350 Electric Bike Hydraulic Disc Brake rotor 160/180mm
Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set 160/180mm caliper and lever
Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set 160/180mm bicycle brake rear caliper
Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set 160/180mm rear caliper
Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set 160/180mm caliper picture model
Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set 160/180mm Brake Lever
Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set 160/180mm rotor
$239.99
$259.99
Style
  • Left-Front & Right-Rear 180mm
  • Left-Front & Right-Rear 160mm
Connector(Check before buying)
  • 2-Pin
  • 3-Pin

High-performance metal-ceramic composites and low noise resin pad for the brakes

  • Left front hose length of 900mm and right rear hose length of 1650mm, pre-filled with hydraulic oil

  • With electrical sensing control system interface, automatically cuts power when braking (Please check the plug type ahead buying)

  • Lightweight polygonal guide design with a diameter of 180/160mm and thickness of 1.8mm for the rotor, weighing 150g each.

  • 2 piston aluminum caliper - The rear caliper hose and lever are separate to facilitate the internal routing arrangement

AFTER-SALE GUARANTEE: 1-MONTH FREE RETURN/EXCHANGE AND 1-YEAR FREE EXCHANGE INSTEAD OF REPAIR

SPECIFICATIONS

GEOMETRY & SIZING

Tips

Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set

Brand

Tektro

Model NO

HD-E350

Material

Cast aluminum

Rotor Diameterze

Ø160/180mm

Mounting position

Left mounting

Type of Connector

2-PIN / 3PIN

Split Design

Internal cable routing frame

Hose Length

Front: 900mm; Rear:1650mm

Package weight

1250g

Application

Mountain/Hybrid Bicycle, Electric Bicycle, Scooter
PARTPROJECT
Rotor160/180mm 1.8mm thickness
LeverCast aluminum lever & bracket Reach adjustment Two-pieces clamp 3 finger blade Finish : Black
CaliperForged aluminum body Easy pads replacement Finish : Black
PadsLow noise resin pad Easy replacement
WeightFront Wheel - 302 Grams / Rear Wheel - 322 Grams (Exclude rotor, adapter & mounting bolts)
s-l1600_3

Tips before buying

1. The Tektro HD-E350‘s connector is 2-PIN. Before purchasing, please confirm whether the connector is 2-pin or 3-pin.
2. The disc brake caliper of this disc brake kit can only be installed on the left side of the wheel, not the right side.
3. Features:
- Compatible with 160 / 180 mm Discs
- Compatible with E10.11 or A10.11 Pads
- Includes Lever, 2 Piston Caliper, Fluid Line
- Electric Brake Cut's - Plug n Play (02/2020 On Models)
- Front Assembly Fluid Line 1000mm Long
- Rear Assembly Fluid Line 1800mm Long

THE NEXT BIG THING

GREAT GIFTS FOR CYCLING ENTHUSIASTS.

Tektro HD-E350 Electric Bike Hydraulic Disc Brake Set
1

Safety-Focused Brakes

Electric bikes require fast and reliable brakes to ensure safety on often challenging terrain. Disc braking system used for vehicle

They provide strong stopping power and are less affected by wet weather and muddy conditions.
2

Fork Shock Absorber

Compared to traditional single-piston brake calipers, the dual-piston design applies pressure evenly, allowing the brake pads to fit the discs more tightly, resulting in faster and more efficient braking.

This design is suitable for situations that require higher braking requirements, such as high-speed downhill, steep mountain roads or situations that require frequent braking. The use of dual piston brake calipers provides safer and more reliable braking performance, allowing the rider to stop more quickly when needed, increasing ride control and safety.

3

Saddle Mountain bikes

Its function is to generate resistance by friction with the brake disc (or brake rim), thereby slowing down or stopping the movement of the bicycle. The resistance generated by the friction between the pad and the brake disc can be transmitted to the brake system through the brake lever or pedal to slow down or stop the bicycle.

Tektro's brake pads are made of ceramic. It has better heat resistance and wear resistance, making the discs braking efficiency higher

4

Non-Slip Tires

The brake disc slows down or stops the bicycle by making contact with the brake pads (brake pads), creating friction when braking force is applied, and converting the kinetic energy of the wheel into heat energy. Therefore, proper thermal performance is critical.
The reasonable hole distribution of Tektro HD-E350 greatly improves the friction resistance and heat dissipation performance

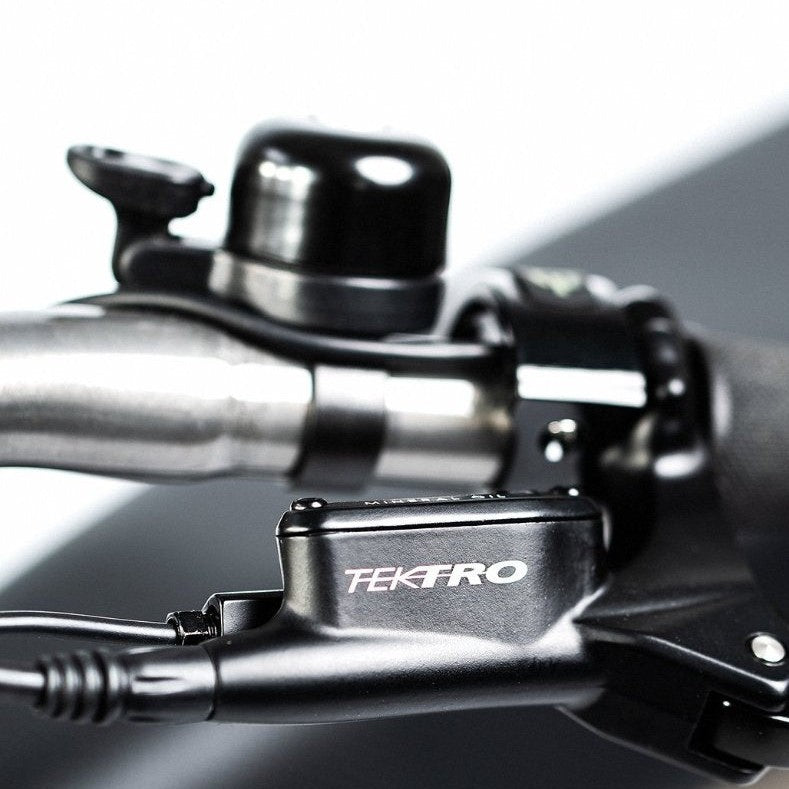

Hycline Tektro HD-E350 Electric Bike Hydraulic Disc Brake Lever

01. Safety-Focused Lever

Die-cast aluminum handle and bracket
Range adjustment
Finish: black
Two-piece holder clamp
3 finger grip
Integrated horn switch
Tektro HD-E350 Electric Bike Hydraulic Disc Brake Caliper

02. Dual-piston brake calipers

Newly upgraded 2-piston disc brake caliper with cooling all-metal pads
Easy to replace pads from above
Forged aluminum body

Tektro HD-E350 Electric Bike Hydraulic Disc Brake Pads

03. Anti-Noise Brake Pads

Compatible with E10.11 or A10.11 Pads
Metal-ceramic composition
Noiseless ceramic material with heat and wear resistance.
02603dad-72b4-488a-886e-73a3011c7566_b2ace522-88fb-4a87-8f19-64a753e5716f

04. High strength brake disc

High heat dissipation and heat tolerance
Brake rotor's surface made of stainless Steel  provides maximizes braking performance

Precision Manufactured Components

156PYD2_4_1_2_aab490f7-e1ce-4596-9904-c3397ca21255

Ergonomic Brake Handle

Experience comfort and control with our ergonomic brake handle design, providing a seamless and responsive braking experience for your rides.
156PYD2_4_1_9fcd92e6-b1cb-495f-aa73-02103800eb4e

Hydraulic Caliper

Aluminum 2-Piston Closed Front & Rear Caliper - Equipped with a double valve. Ensure precise modulation of braking force, giving you better control and responsiveness during your rides.
156PYD2_4

Brake Pads

The matching brake pads have high temperature resistance and friction performance. Reduce the number of replacements while keeping excellent braking

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
N
Nelson Flores
I love all

I recommend the store 100%. quality of products and super fast delivery. thank you

User picture User picture
S
Shelley Crone

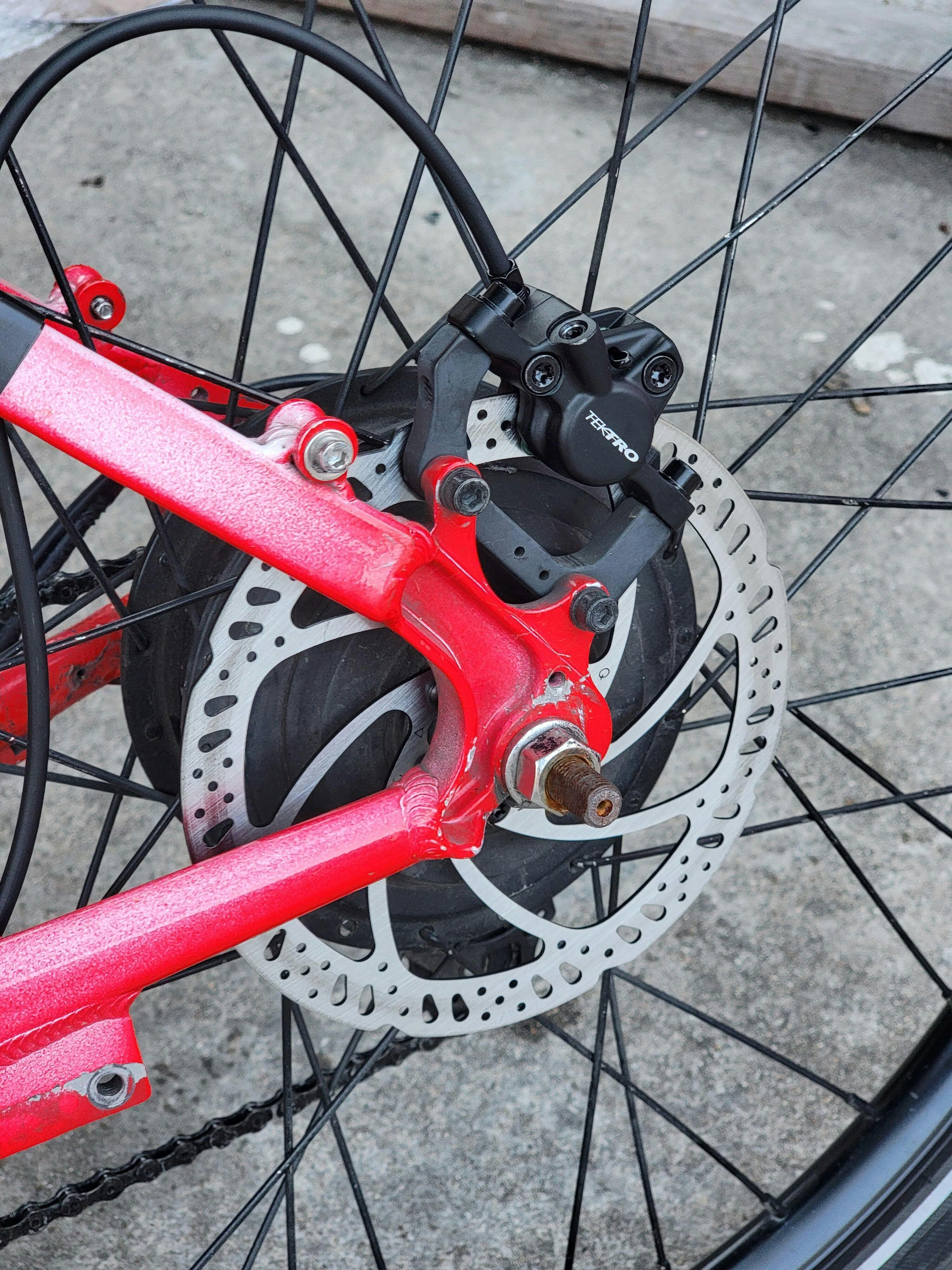

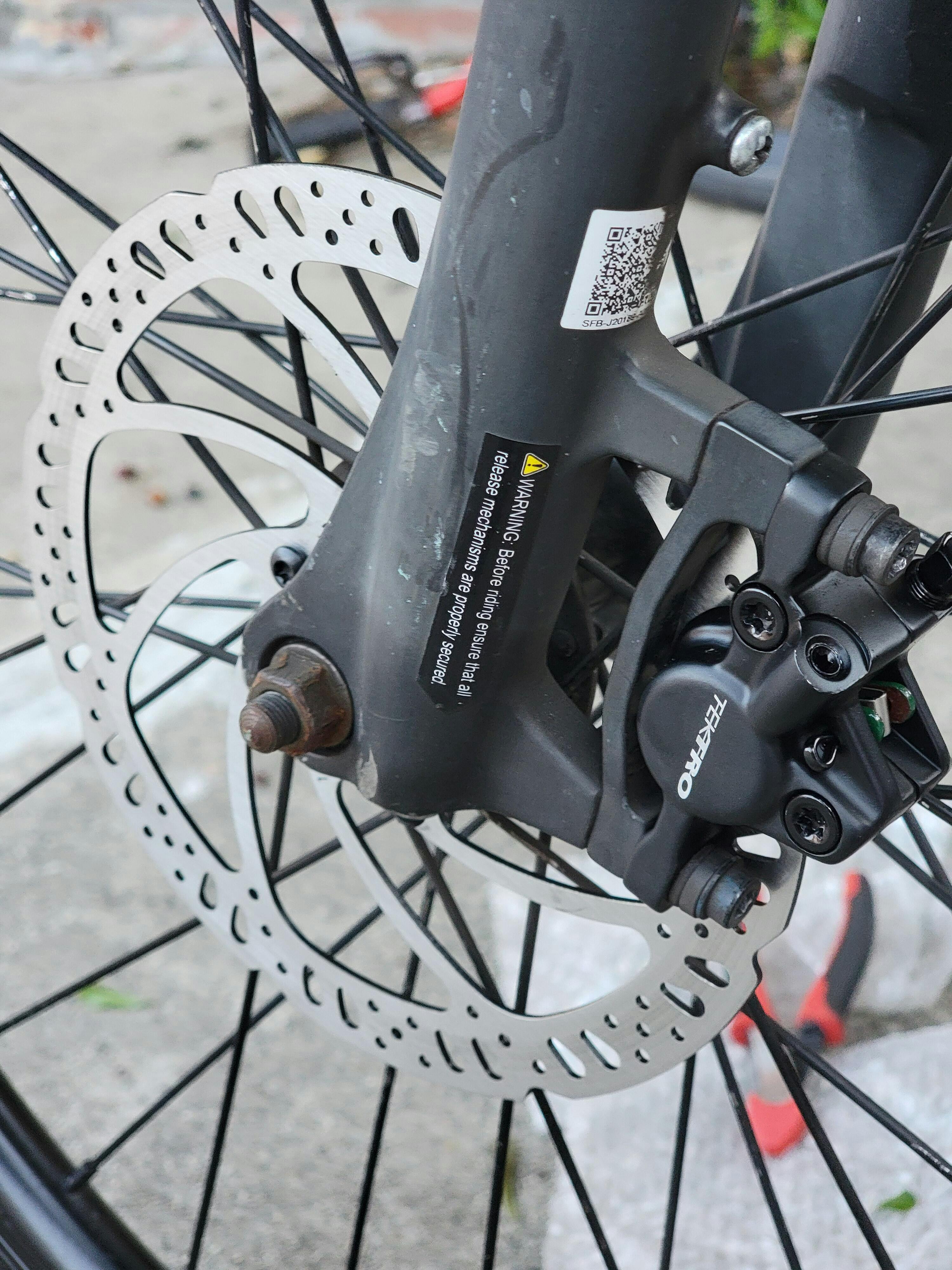

Works great
